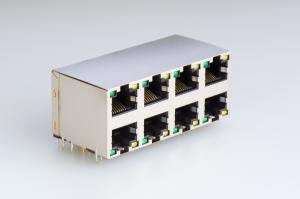

2x4 Port RJ45 Female Jack , RJ45 8P8C With Shielded And LED , 90 Degree Jack
Specifications
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Ports | 8 |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Shielding | Shielded, EMI Finger |
| Ratings | Cat3 |
| Features | Board Lock |
| LED Color | No |
| Tab Direction | Up |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Housing Material | Thermoplastic |
Eceatrical
1. voltage Rating:125 val
2. Insnlation Resiitance:500M min
3. Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min
Mechanical
1. Operating:750 cycles min
Materical
1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2. Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch
Environmental
1. Working Temeperature:-20℃to 75℃
2. Storage Temeperature:-45℃to 85℃
Mates with modular plug conforming to FCC part 68,subpart F.
Drawing
2x4 Port RJ45 Female Jack , RJ45 8P8C With Shielded And LED , 90 Degree Jack
( PHC )
